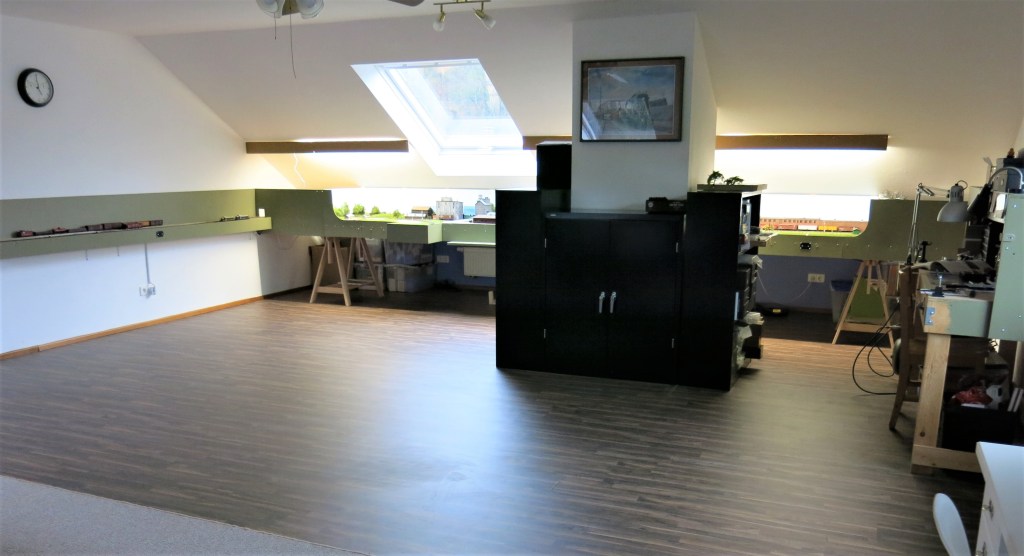

In October, 2019 my family and I moved from my house in Albersbach, Germany to a much more modern and efficient house closer to work. Doing so meant I had to dismantle my point-to-point M&StL Ackley, Iowa layout and move it to the new place. That wasn’t a big deal as I built the layout to move.
Above. The Ackley, Iowa layout nearly complete in 2017.
As I related in an earlier post, moving the layout did go so well. Most importantly, Ackley did not quite fit in the new layout space so I carefully stored it in the garage. As I contemplated building a new, smaller layout for the new space I thought it would be wasteful to buy things for a new layout when I already had all those things on the Ackley layout. Moreover, the Ackley layout got a little bashed up in the move. Eventually I decided to scrap it, and salvage it for parts, and move on.
I considered a lot of options for the new layout. I have covered in exhaustive depth my plans to model The Milwaukee Road freight house in Mason City. At the same time I also considered building a small layout based on the Illinois Central freight house in Champaign-Urbana. I also looked at the Illinois Central freight house in Decatur, and even planned a layout based on the huge Milwaukee Road freight house in downtown Minneapolis. None of the plans worked out to my satisfaction.
Below. The back end of the IC freight house in Decatur. With the main line out of the picture on the right, and a few more industrial sidings on the left, I thought this area would make a great small switching layout.
Allow me to back up a little bit. The genesis of this small layout concept is something I have called The Factory. The Factory concept is a small, 2 x 8-foot layout featuring a single industry that had a little bit of everything and offered just enough for a 20 or 30 minute ops session. I found a few factories that would work, such as Decatur Soy (in Decatur), and the American Radiator Company in Litchfield, Ill. I’ll do posts on both of these places later.

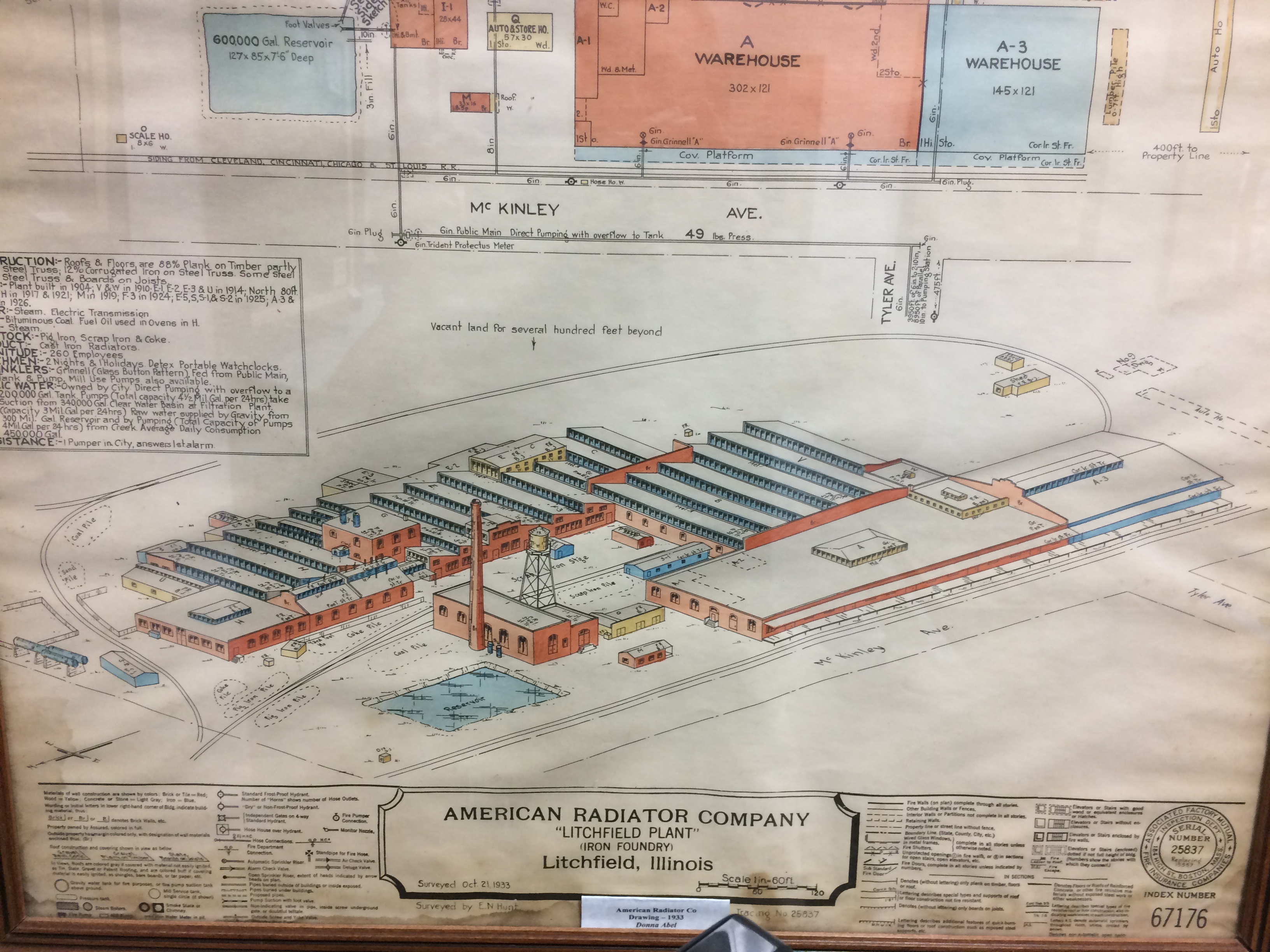

An example of The Factory is below–the American Radiator Co.–with map courtesy of my best friend Lonnie Bathurst. The plant was in Litchfield and was served by the Big Four. The plant had a need for coal (gons and hoppers), sand (gons and hoppers), fuel and lubes (tank cars), machinery and raw materials (box cars), and out-shipping in box cars. Probably some stuff on flat cars too, as there is a gantry crane seen in photos. That’s lots of different kinds of cars to handle. It’d make a nice, small layout–perfect for a 30-minute ops session.
The American Radiator Co. concept worked, but it just didn’t scratch the itch.
Finally, one evening in October, while looking at railfan slides and some maps of the RF&P and Seaboard switching districts on the north side of Richmond, Virginia, I found a switching area that had just about everything. There wasn’t one large industry, but a layout based on a variety of small rail-served customers in this area offered an opportunity to use a lot of different freight car models. The area was pretty generic so I felt like it could be Anywhere USA, just as the old Ackley layout was.
The area is located right behind the old SAL yard, alongside Hermitage Road. Thus, “Hermitage Road” was born.
Below. This is another Bill McCoy photo of Hermitage Yard in north Richmond. The tracks at the far left are the RF&P and ACL main tracks to Richmond’s Main Street Station. The tracks immediately below are the SAL main tracks to the RF&P Acca yard, which is in the far background. The area being modeled is behind the engine shop at the far right.
Unlike every other layout I’ve ever built in my life, Hermitage Road doesn’t follow an exact prototype arrangement. Instead, it combines features of four different industrial tracks and puts them into one place. I call it a “composite layout”.
Below. Here’s an aerial that shows the basics. SAL’s Hermitage Yard is at center. The big wye is the ACL-RF&P connection to Richmond’s Main Street Station, which is just out of view at the bottom right. Hermitage Road is the four lane road crossing at right from top to bottom next to the old baseball grounds.
The layout is 6 feet, 10 inches long and 17 inches wide, with room for a staging yard less than six feet long. Hermitage Road has just six industries and a team a team track–at most 13 spots. There is no run-around and no complex track or features. There are only three tracks, one with a short switch-back. That’s it.

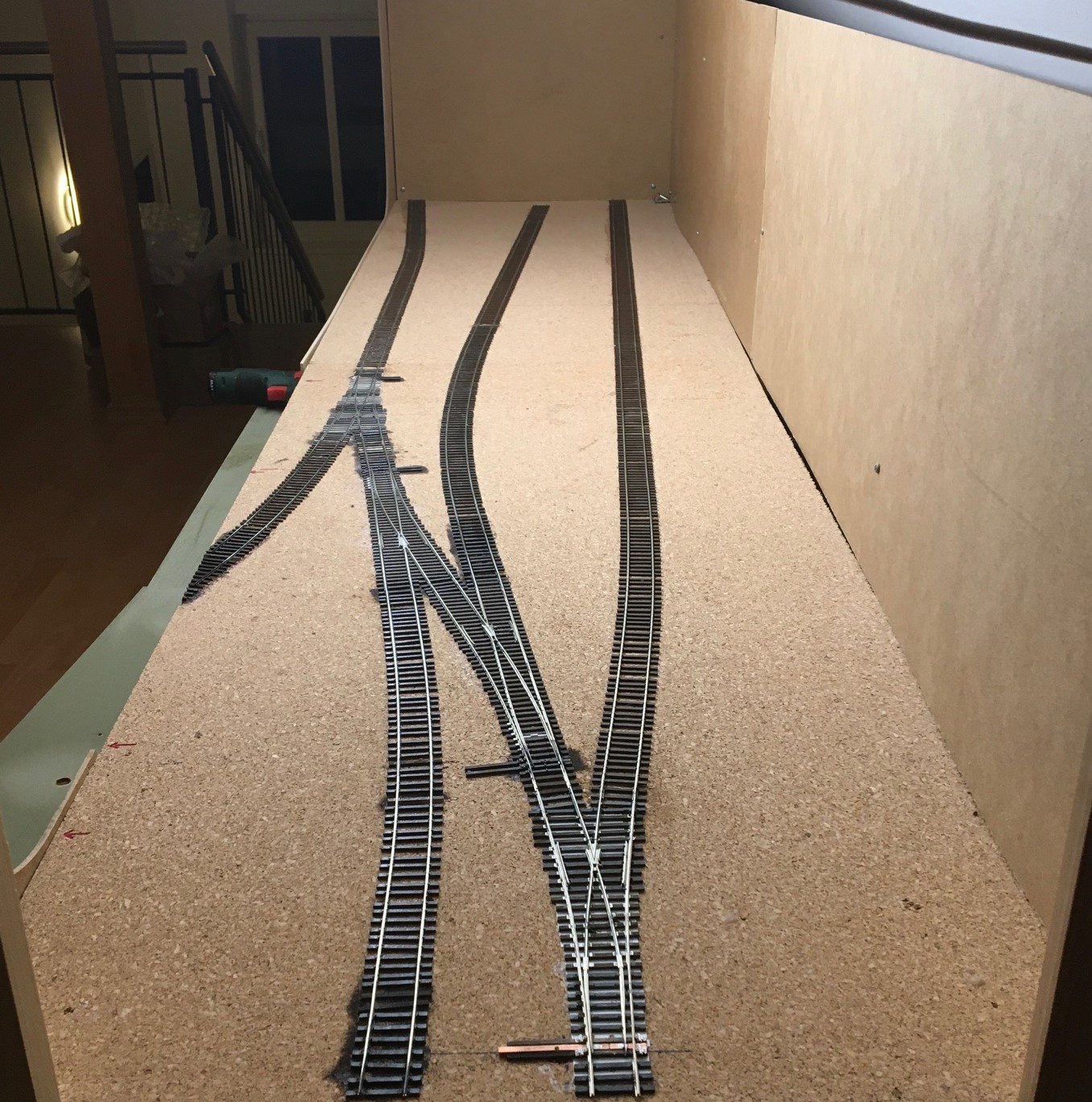

As you can see below, the layout is well underway and all the track on the visible layout has been secured. The staging yard will be built when the visible layout is completely wired and operational.
The six industries selected represent the wide variety of customers served behind Hermitage Yard. Actually a few of them were just off of Ellen Road, and I thought long and hard about naming the layout Ellen Road as a tip-of-the-hat to a favorite English football club, Leeds United, who play at a stadium called Elland (with a d) Road. For the layout, I like using the word Hermitage better—it is more descriptive, and I like the association with the old Seaboard yard and also the word’s Christian heritage. So, Hermitage Road it is.
In early Christianity, a hermitage was a place where Christian men lived on their own to escape the temptations of the world. According to Wiki “…these retreats were caves or small buildings in deserts, mountains, forests or on islands.” In a way, Hermitage Road is my place to escape the world to relax and play trains.
Below. I’m hoping Hermitage Road will look something like this. This 1991 photo was taken in a SAL-Southern Rwy switching district on the south bank of the James River.
Here’s a short breakdown of the industries and tracks:
- The track nearest to the aisle includes an unnamed grocery warehouse, an unloading ramp/team track, and the Southern Fuel and Oil Co. Five spots total. The grocery warehouse can take refrigerators, box cars and ventilated box cars.
- The center track serves one customer, the Hermitage Coal Co. which can accept hoppers and gondolas, and even box car loads of coal. Two to three car spots will be available.
- The track farthest from the aisle has two industries, the Alcatraz Paint and Varnish Co. and the Richmond Cinder Block Co. The Richmond Cinder Block Co. is the largest of the industries on the layout; it receives raw materials via hoppers, gondolas and covered hoppers and can ship out blocks in box cars or gondolas. About four car spots total. The Alcatraz Co. can take box cars and tank cars–one of each. Alcatraz also had an asphalt side-business so that will drive a demand for an additional tank car when needed.
This variety of industries allows me to use box cars, tank cars, flats, gons, hoppers, vents and reefers. For a freight car modeler, it’s perfect.
Below: The concept photo for the small Hermitage Coal Co.
The layout is designed to be somewhat like an English cameo layout. English cameo layouts usually feature a very simple design and an operating area entirely framed by fascia top-to-bottom. Hermitage Road is framed in a similar fashion. It is constructed of lightweight materials and will be easy to bring downstairs for parties or to RPM meets or other events.

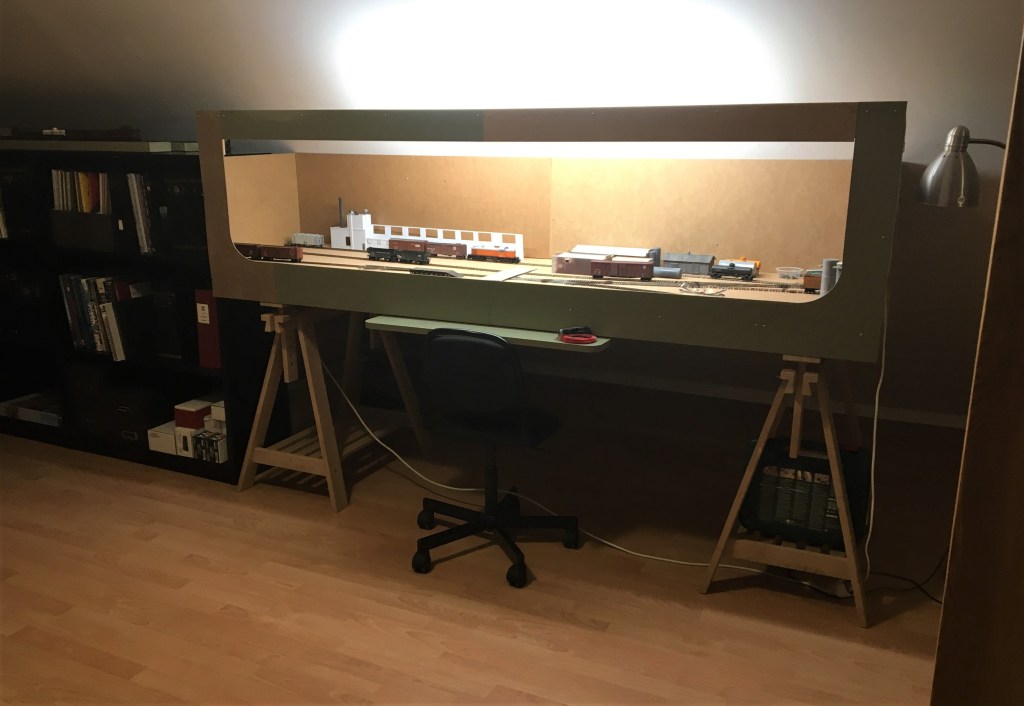

Here’s what the little layout looked like a few weeks ago, below, as I was still mocking up structures. As of today the layout is completely wired up and operating.
I hope you and your families had a wonderful Christmas celebration, and are looking forward to a great year ahead. I am! – John G
