C&O had a few small classes of covered hoppers, rebuilt from coal hoppers, that I have always wanted to model. I finished my HO scale model of a C&O 300-class rebuild covered hopper this week and wanted to write a post to wrap up that project.

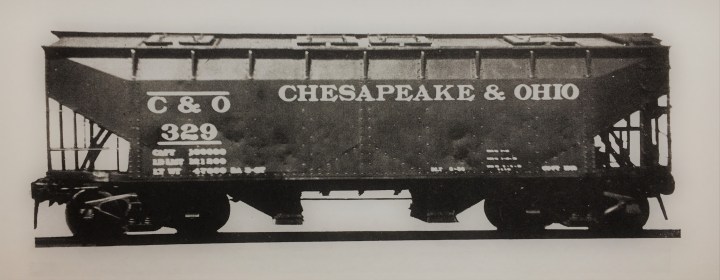

The original cars were two-bay coal hoppers that were delivered in 1937 to C&O by General American, C&O series 118000-118999. C&O rebuilt 50 cars with new peaked roofs, rebuild interiors, and new hoppers and gates in 1937. The new cars were called “Dry Bulk” cars and were assigned numbers 300-349. C&O rebuilt them again in 1951. Here are two photos of the cars after the first rebuilding in 1937.
I used one of the beautiful Intermountain C&O hoppers as my starting point–one that looked kinda like this but with flat ends:
First I built an identical peak on each end, then installed a roof made of sheet styrene. The hatches are from Detail associates. I also added ribs per the prototype and rivet detail using archer rivets. I used hopper gate details from a Funaro and Camerlengo kit. The running board and laterals is all scratchbuilt. The trucks are from Tahoe Models Works–they’re Double Truss type with semi-scale wheelsets.
I made two noticeable errors with my model. First, the rib detail on the roof of my model is a lot more pronounced than on the prototype. If you look at the prototype photo, the ribs are flat–in fact they could be just seams instead of ribs. So I really overdid it there. Also, the sides of the roof are not supposed to be flush with the ends. While that detail isn’t quite as noticeable, I know it’s wrong.
I didn’t take photo of my car until after I sandblasted the car and applied the first coat of paint (below). Here you can see that the rib detail on my model is a lot more noticeable.

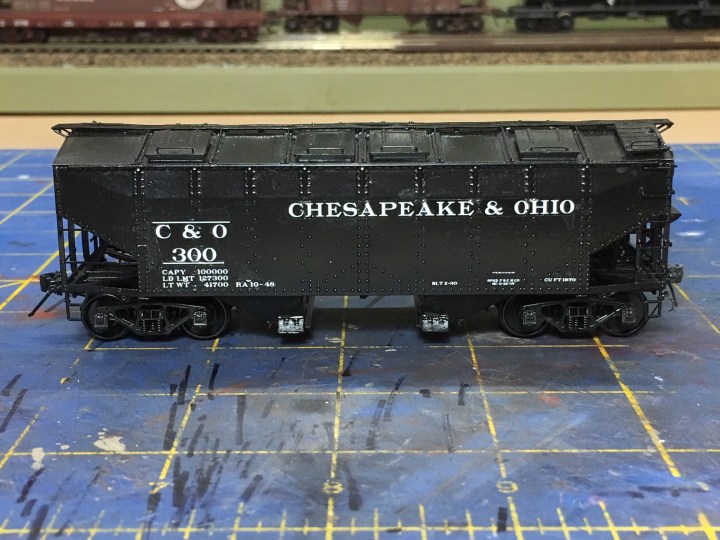

The model sat in my “cars under construction” box for two years and recently I took it (and a lot of other cars) out for finishing. Here is the car after decals (below). I used the Microscale HO set, but had to fudge on quite a few of the numbers. For example the Load Limit should be 121,000. The Light Weight and Cubic Feet is also incorrect.
To finish the model, I painted it with two coats of my “special Dullcote” which is about 40% Testors Dullcote, 40% Testors Glosscote, and 20% thinner. When that was dry I gave it a second coat, only with this coat I added a little black paint. That tends to help blend all the colors and shades together. The decal films is showing up a little bit in the brightly-lit closeup below.
Then I carefully weathered the model with a little AIM white weathering powder, and I over-did it of course so I went back over it lightly again with Testors semi-gloss black. I added a few additional cement streaks with white Tamiya water color paint. I weathered the underframe with AIM Earth dry powder.
The key here–at least to me–is not over-doing the white streaks. A little is okay. A lot often just doesn’t look quite right. It is very easy to over-do white weathering. Besides, I don’t run a filthy railroad.
Chalk marks were added with a white artist’s pencil. When I felt like I was done I sealed it all with a few light oversprays of clear Dullcote.
I like this car a lot. I doubt any ever made it to the M&StL lines, but it’ll fit in when I operate NYC or SAL equipment.
Both NYC and C&O had some rebuilt USRA two-bay hoppers that were used in dry bulk service that would be easy to model as well. Frisco had some cool rebuild covered hoppers made from two-bay panel side hoppers. Now if I could only find some decals…
